Technical Specifications
of the Warehouse Theatre

Inventory - Lighting Equipment 1x Strand series 300 Console 50 channel, 24 subs, dimming for 48 ways 12x 743 1k Fresnels 10x Patt.123 Fresnels 10x Patt. 23 Profile Spots + 4 iris 1x Prelude Fresnel 1x Minuette Fresnel 2x Minuette Profile 500W 1x Strand 1k Profile T 64 SPOT 6x Par 64 (Wide Angle)   also medium CP60/61& EXND 7x Source 4 Pars + 4 lenses each 2x Source 4 JR 50 degree 20x Short Nose Birdies Limited supply of Barndoors and Gobos   available The theatre also carries a limited stock   of colour

Inventory - Sound Equipment 1x 150W Per Channel Yamaha Amplifier 1x 75W Per Channel Omniphonics   'Footprint' Power Amplifier 1x Soundcraft 8 into 3 Mixer 1x Sony Mini Disc player 1x Dennon DNC615 CD Player 1x Denon Twin Cassette Desk  1x Alesis Microverb 2x Bose 802 Loud Speakers (moveable) 2x JBL Control I Loud Speakers 1x Sennheiser ME66 K6 system   (short shotgun) 1x Sennheiser ME66 K6 system   (medium shotgun) 1x AKG D3800 Tri Power Mic 1x Emo Direct Injection Box 1x Boom mic stand 2x Upright mic stand A small selection of leads available

Please check with our Production Manager as the tech spec is subject to change
Production Manager, Graham Constable
on 020 8681 1257(usually after 3pm) or by e-mail

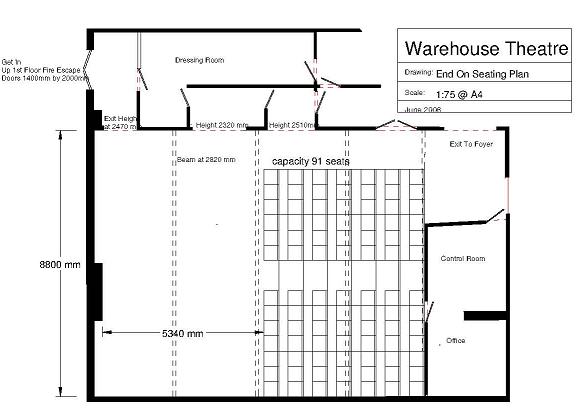

THE THEATRE LAYOUT IS FLEXIBLE

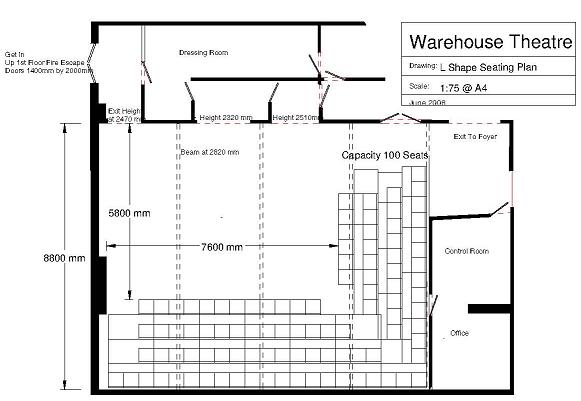

below is one of the layouts possible   l-shape pdf  (to scale) photographs
(Please liaise with our Production Manager regarding layout -
there is normally a charge if a different layout from the one in current use is required)
SEATS: 90 - 100 (depending on layout)

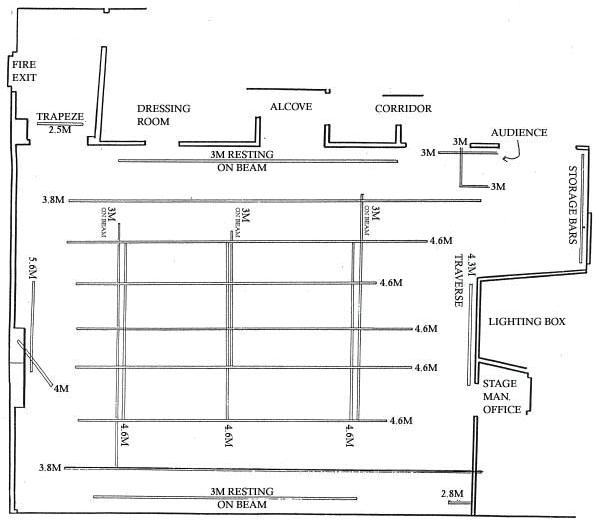

LIGHTING BAR PLAN

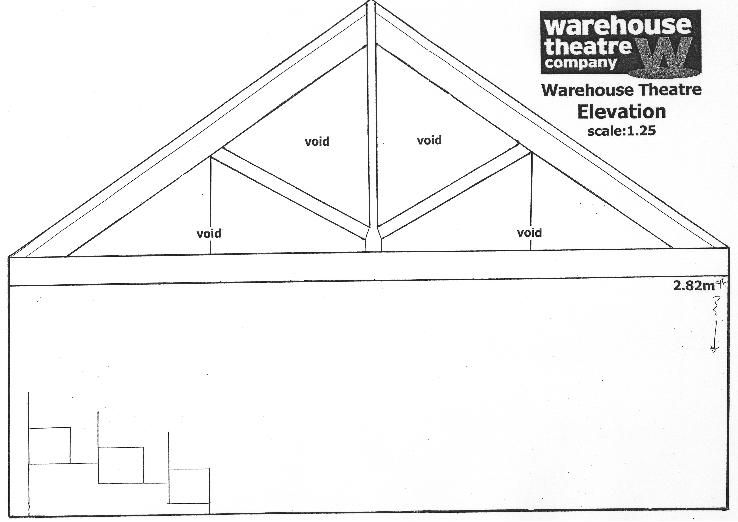

ELEVATION (sorry, very rough - soon to be updated)
